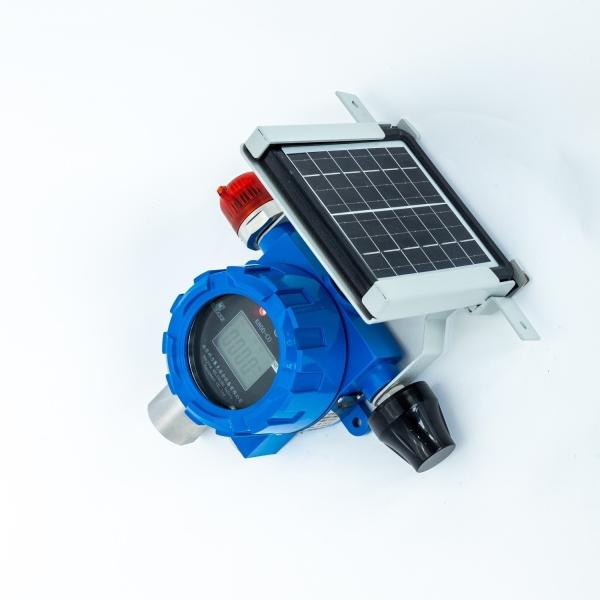

K800WS Fixed Dual Gas Detector Reliable Toxic Flammable Gas Detection

Brand Name : KELISAIKE

Model Number : Per the description

Place of Origin : Nanjing,China

Certification : CE

Product name : Gas Detector Fixed RS485 4-20ma detect all gases

Color : Blue

Type : Fixed gas detector,Wall mounted

Measure range : 0-100ppm,0 - 25% VOL,0-100%LEL

Detecting gas : Combustible Gas,NH3,H2

Alarm type : Sound+Light Alarm

Response time : <30S

Warranty : 1 Year

Display : LCD

Usage : Industrial Production,industrial Combustible gas toxic gas leak alarm

Name : Fixed Industrial lpg gas leak detector for gas detection

Sensor : electrochemical sensor,Catalytic sensor,Catalytic or electrochemical or infrared

Detection principle : catalytic combustion / electrochemical / semiconductor,PID,Electrochemical,catalytic combustion type; electrochemical; infrared,Principle of electrochemistry

Working voltage : AC220V 50HZ

Output signal : 4-20mA/RS485,relay

Sampling method : Diffusion,fixed

Description : K800WS Fixed Gas Detector – Gas detection sensors are easily and economically deployable in both permanent and temporar

Stock : 100pcs in stock

MOQ : 1

Price : USD 680

Payment Terms : T/T, Western Union

Shipping Method : Express

Contact Now

K800WS Fixed Dual Gas Detector

K800WS Fixed Gas Detector – Gas detection sensors are easily and economically deployable in both permanent and temporary installations. These low-power sensor assemblies utilize electrochemical technology for a long list of toxic gases. These advanced field devices consist of a K800 Model Series low-power gas detection sensor and a wireless transceiver packaged in a single enclosure. Power is provided by internal battery pack options: Lithium-ion rechargeable battery pack allows for 18 months of operation.

K800WS Fixed Dual Gas Detector Reliable Toxic Flammable Gas Detection

K800WS Fixed Dual Gas Detector Reliable Toxic Flammable Gas DetectionK800WS Fixed Dual Gas Detector Reliable Toxic Flammable Gas Detection

Application:

Combustible and toxic gases can leak virtually anywhere. Flanges, pump seals, valves, and storage tanks are all potential spots where a dangerous gas or liquid can make its way into a safe area.

Unfortunately, these places are often not located near the main part of the plant or other areas where detection instruments are installed.

Additionally, gas detection may be desired at the boundary of a facility where no infrastructure currently exists, making it prohibitively expensive to run conduits and cabling to these locations. Inconvenience and expense, however, do not mitigate the risk of a life-threatening or catastrophic leak.

Solution:

KELISAIKE’s Wireless Communication System includes a 800 MHZ radio that communicates to a gateway, providing reliable real-time detection data at distances of up to 1 mile with a clear line of sight. Accepting both analog and ModBus inputs, the system’s wireless communication is easily established to the gateway that is located near the PLC or DCS.

Every device in the network communicates through the telecom cloud Internet. This unique and innovative technology is designed to create a robust network that automatically routes around congestion and line-of-sight obstacles while improving throughput as subscriber device density increases.

If power is not available, a solar panel, controller, battery and charger can be provided to ensure up to 18 months of operation even with little to no sunlight.

Technical Specification:

Type Explosion proof/ flameproof enclosed transmitter(*d*)
Gases Flammable, toxic gases and oxygen, depended in the sensor used
Measuring range Customized adjustment, see sensor data sheet
Sensor Cell: UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors
Display LED
Working condition Power Rechargeable battery/220V AC
Working temperature -20℃~+50℃
Working humidity 10%RH~95%RH Non-Condensing
Pressure range 86Kpa~106Kpa
Input/Output 800MHZ 4G-NB China Telecom/ 433MHZ ISM BAND ROLA
Power input Internal battery pack rechargeable battery pack 20000MAH
Solar Panel 2W
Construction Junction Box: Aluminium Alloy, (Stainless Steel Option) Detector: Stainless Steel
Accessory Options

Specifications subject to change without notice

Tripod for mounting (specify pole mount and /or leg mount brackets

Mini tripod for mounting (specify pole mount and /or leg mount brackets

Solar charging panel (for safe areas only)
